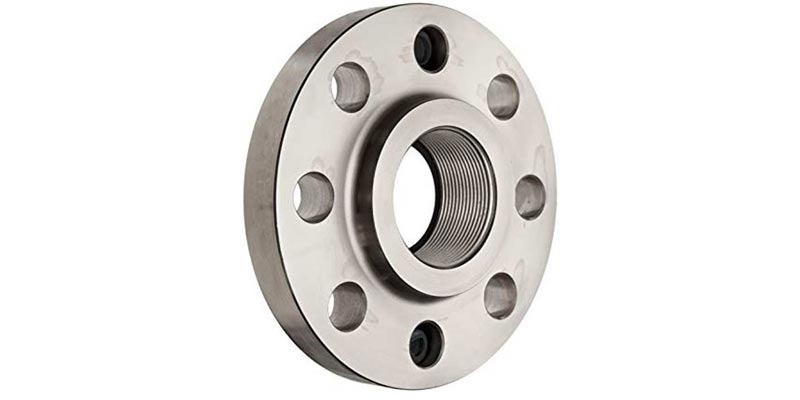

Theraded Flanges



Singhal Engineers is one of the most recognized Manufacturer & Exporter of High Tensile Threaded Bars Fasteners in India.The raw materials used have been tested and then used to confirm the robust and sturdy character of this product.



Threaded Flange, Threaded Forged Flanges, Screwed Flanges Production Range



Size	1/2″ (15 NB) to 48″ (1200NB)
Standards	ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings
Pressure Ratings	Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.
Carbon Steel Threaded Flanges	ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Blind Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8
Stainless Steel Threaded Flanges	ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L
Alloy Steel Threaded Flanges	ASTM A182 F1, F5, F9, F11, F22, F91
Special Alloy Threaded Flanges	Duplex, Super Duplex, Nickel Alloys
Flange Face Type	Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Coating/Surface Treatment	Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized
Value Added Services	CNC Machining, Customised Flanges
